X12/H12 1U CloudDC and WIO with PCIe 4.0

X12/H12 1U CloudDC and WIO with PCIe 4.0

All-in-One Servers with PCIe 4.0 and Flexible I/O Options for Cloud Scale Data Centers

...

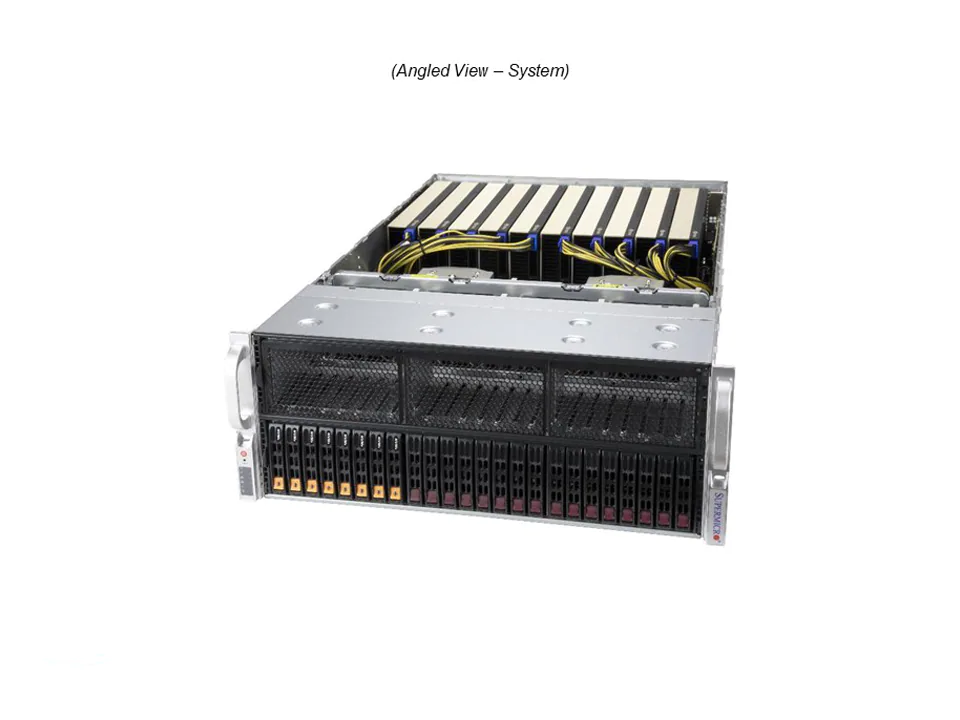

GPU SuperServer SYS-420GP-TNR

Key Applications

  • High Performance Computing
  • Rendering
  • VDI
  • AI/Deep Learning Training

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
    • 32 DIMM Slots;
    • Up to 8TB DRAM;
    • Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    • 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    • Intel® Optane™ Persistent Memory 200 series
    • 12 PCIe Gen 4.0 X16 FHFL Slots
    • AIOM/OCP 3.0 Support
  5. Flexible networking options
    • 2x M.2 NVMe for boot drive only
    • 8x HOT SWAP 2.5” NVMe
    • 8x HOT SWAP 2.5” SATA
    • 8x HOT SWAP 2.5” SATA/SAS (AOC required)
    • Total 24x 2.5\" Hot-swap drive bays
  7. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  8. 4x 2000W redundant Titanium level power supplies
  • GPU: 10
  • GPU - GPU: NVIDIA® NVLink™ Bridge (optional)
  • CPU: 2
  • CPU Type: 3rd Gen Intel® Xeon® Scalable Processors
Ürünler

A+ Server 4124GS-TNR

Key Applications

- AI / Deep Learning
- High Performance Computing (HPC)
- Cloud Gaming
- Molecular Dynamics Simulation
 Key Features

1.Supports up to 8 double-width GPUs
Direct connect for maximum performance

2.Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)

3.8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

4.9 PCI-E 4.0 x16
(Option: 10 PCI-E 4.0 x16 slots without NVMe devices)

5.Up to 24 Hot-swap 2.5\" drive bays.
With included hardware:
 • 2x 2.5\" SATA in RAID 1 via onboard
  Marvell 9230
 • 4x 2.5\" NVMe (depends on PCI-E quantity
  based on #4)

RAID controller option available for 24 HDDs

6.2 GbE LAN ports (rear)

7.8 Hot-swap 11.5K RPM cooling fans

8.2000W (2+2) Redundant Power Supplies
Titanium Level (96%+)
(full redundancy based on configuration and application load)

  • GPU: 8
  • GPU - GPU: NVIDIA® NVLink™ Bridge (optional), AMD Infinity Fabric (optional)
  • CPU: 2
  • CPU Type: AMD EPYC™ 7002/7003 Series Processors
Ürünler

GPU SuperServer SYS-420GP-TNR

Key Applications High Performance Computing Rendering VDI AI/Deep Learning Training Key Features Dual Socket P+ (LGA-4189) 3rd Gen Intel&r...

  • GPU: 10
  • GPU - GPU: NVIDIA® NVLink™ Bridge (optional)
  • CPU: 2
  • CPU Type: 3rd Gen Intel® Xeon® Scalable Processors
Detaylı Bilgi

A+ Server 4124GS-TNR

Key Applications - AI / Deep Learning - High Performance Computing (HPC) - Cloud Gaming - Molecular Dynamics Simulation  Key Features 1.Support...

  • GPU: 8
  • GPU - GPU: NVIDIA® NVLink™ Bridge (optional), AMD Infinity Fabric (optional)
  • CPU: 2
  • CPU Type: AMD EPYC™ 7002/7003 Series Processors
Detaylı Bilgi
